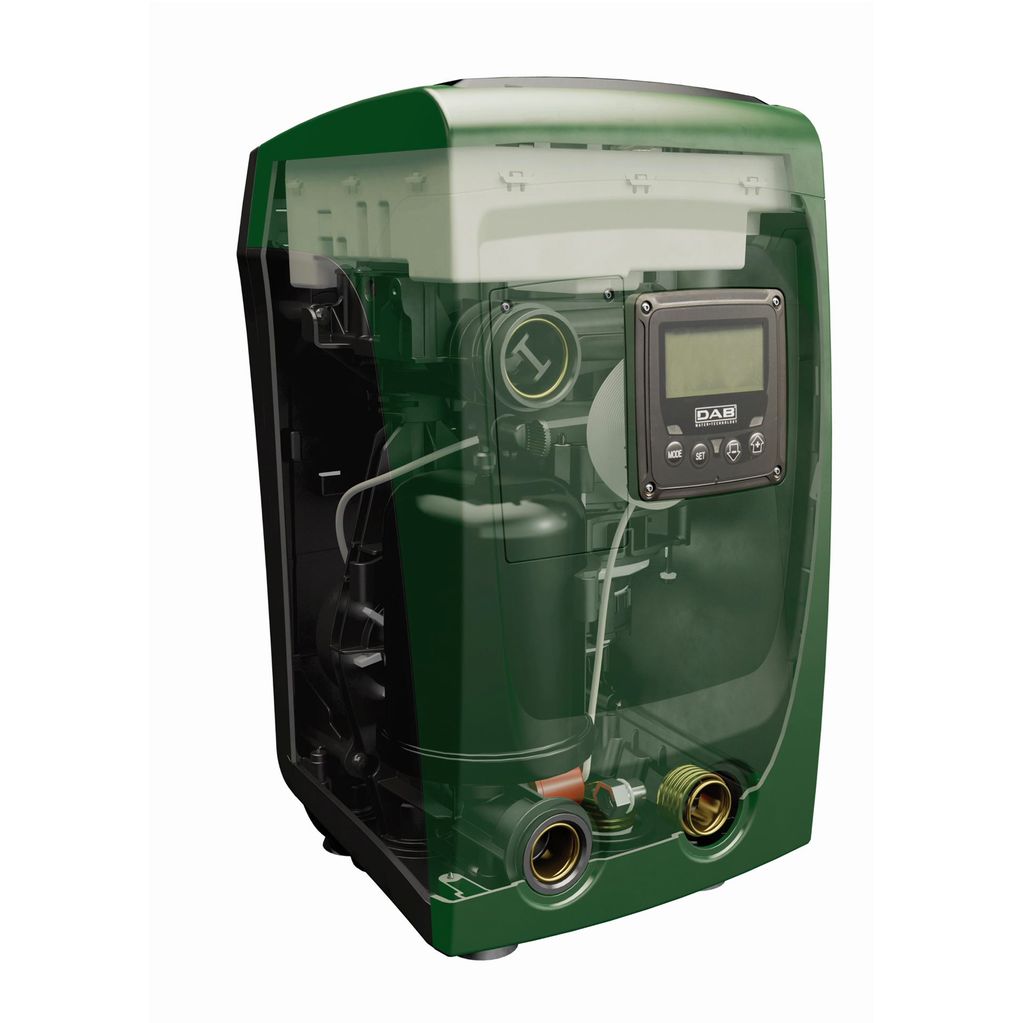

Esybox Mini 3 has a different appearance than any other booster set and is small and completely integrated. Once you install and use it, you realize that the real difference is in comfort and performance.
Dimensions (cm): H43.9 x W26.3 x D23.6
Furthermore, the pump body is equipped with anti-vibration feet, which makes the Esybox mini 3 even more quiet and comfortable; it has also been designed for a horizontal and vertical setup.
The Esybox mini 3 is fitted with a number of technical features, including:
- an electronic speed regulator, ensuring consistently constant pressure
- a speed controller with a start/stop function for specific water pressure in designated areas.
- multi-step, providing increased water pressure when required.
- various sensors, such as: an electronic pressure-difference sensor, a built-in temperature sensor, and a flow-rate / capacitance meter
Whether you install the DAB Esybox mini 3 horizontally or vertically, in a ventilated area or a small space, this pump can handle any situation.
The integrated non-return valve allows for a horizontal and a vertical setup, and the DAB Esybox mini 3 is also about 60% more compact compared with traditional installations. Most importantly: the Esybox mini 3 has a protective mechanism that prevents icing within the system, because the pump switches on instantly to heat itself up when temperatures drop below freezing point. This pressure-boosting system is fitted with a 70x40 mm, high-resolution LCD display, and the user-friendly interface makes the DAB Esybox mini 3 very easy to control.
- Provides sufficient pressure and capacity for five sprinklers
- Provides sufficient pressure and capacity for a house and/or HOA apartment building (three units)
- The hose that can be used for this pump has a diameter of 1" for the delivery connection and 1" for the suction connection
- Draws water from a maximum depth of 8 metres
- The maximum delivery head is 55 metres, which equals 5.5 bar output
Contents of the kit:
- DAB Esybox mini 3 with an integrated 1-litre water tank
- 4 anti-vibration feet
- Manual
What you need to connect to your (the row of required devices between your pump and the start of your irrigation line):
- reduces the union from 1"
- / - needed to make any turns or joins from your pipe work to your whipkit
- - this joins to the
- - what it says on the tin! You'll need this to glue the above pieces together
- - for any threads (eg the composite union to your DAB pump)
Esybox Mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus optimization of energy consumption. Suitable for use with a nutrient solution or clean water in gardening applications. The new 3-rotor model ensures further noise reduction and energy consumption.
Guides
Specifications
- Operating Range: Flow rate up to 80l/min; head up to 55m
- Pumped Liquid: Clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized and not chemically neutral
- Liquid Temperature: From 0°C to + 35°C for domestic use and from 0°C + 40°C for other use
- Maximum Suction : 8 meters
- Maximum Operating Pressure: 8 bar (800 kPa)
